Description

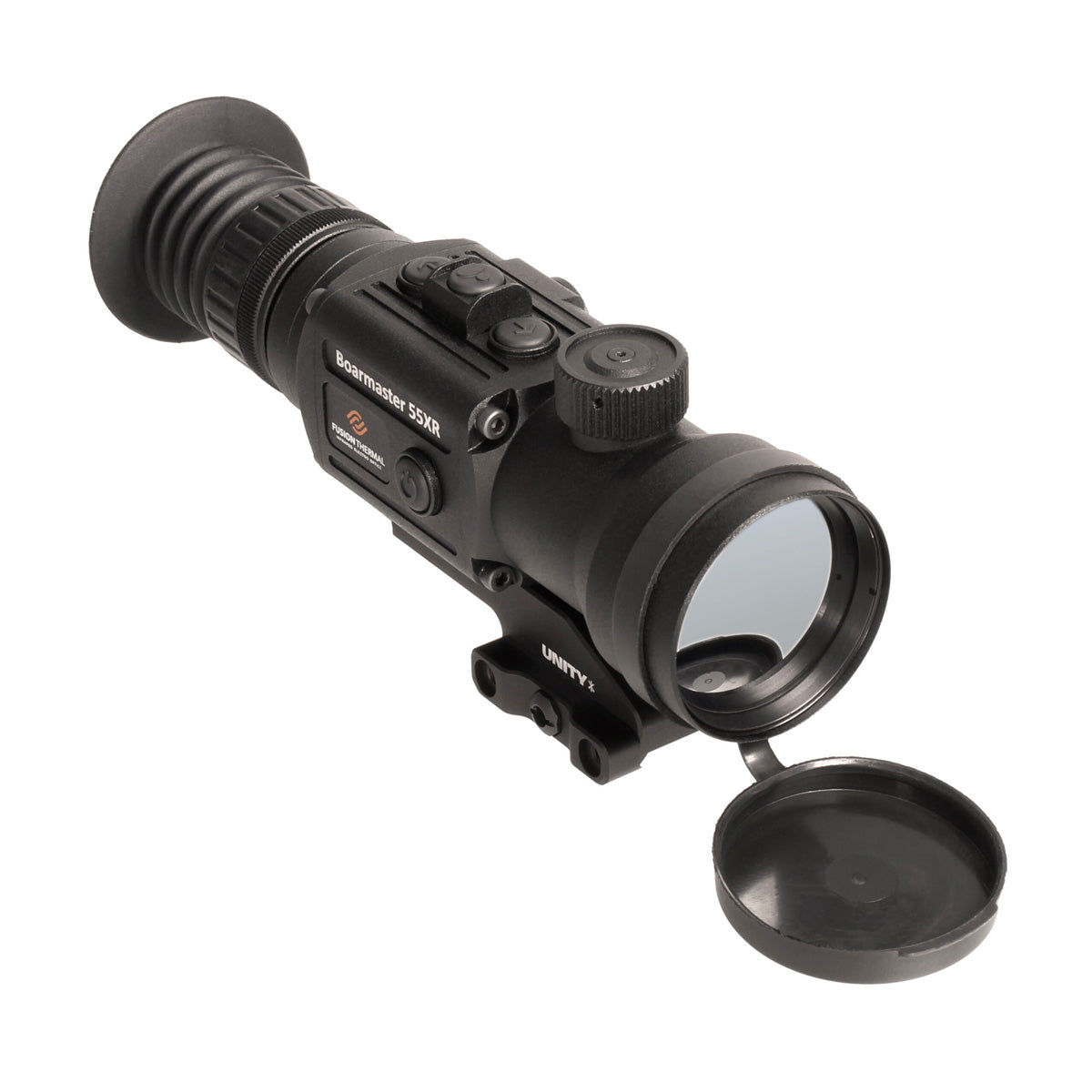

The Fusion Boarmaster 55XR is a thermal riflescope from Fusion Thermal with a 640×512 WAVE12 sensor and a 55 mm Arclight germanium lens. It is the upgraded Boarmaster with an upsized 55 mm lens and Fusion’s flagship WAVE12 sensor.
Why choose the Fusion Boarmaster 55XR
The Boarmaster 55XR is built for simplicity: three buttons, an English-language menu and a fast 5-second start-up. The 640×512 sensor and 55 mm lens detect heat out to about 2600 yards, while the aluminium housing pulls heat away from the electronics. It comes with a premium quick-detach mount that can also carry an optional red dot.
Key features
- WAVE12 12 µm VOx sensor technology for even pixel uniformity and high sensitivity.
- Arclight Ultra HD germanium objective lens with micro-click focus.
- Super HD OLED RGBW display with 3.2 million dots.
- Seven reticle designs plus a no-reticle option, in five colours.
- T3 three-button control system and a simple English-language KISS menu.
- XGEN 6082 aluminium housing, IP67 water resistance and a recoil rating of .300 Win Mag.
Fusion Boarmaster 55XR specifications
| Thermal sensor | 640×512 VOx (WAVE12), 12 µm |
|---|---|
| Frame rate | 50 Hz |
| Objective lens | 55 mm Arclight Ultra HD |
| Base magnification | 2.5x |
| Digital zoom | 5x and 10x |
| Field of view | 450 ft at 1000 yd |
| Detection range | Up to 2600 yd |
| Display | Super HD OLED RGBW, 3.2 million dots |
| Colour palettes | 4 |
| Reticles | 7 designs + no reticle, 5 colours |
| Protection | IP67 |
| Recoil rating | .300 Win Mag |
| Gun profiles | Up to 5 zeros |
| Battery | 2 x CR123A or 3.7 V rechargeable |
| Weight | 20.2 oz (without mount or batteries) |
| Length | 7.5 in |
| Warranty | 5-year transferable |
Choosing the right thermal scope
Start with the distances you usually shoot. A 384 sensor suits most hunting at typical ranges, while a 640 sensor shows more detail and helps you identify animals further away. A larger lens gives more reach, but a smaller lens gives a wider field of view for scanning. Also think about battery life, weight and whether you want a built-in rangefinder. If you need help comparing models, contact our team before you order.
Who it is for
The Fusion Boarmaster 55XR suits hog and predator hunters who want a straightforward, rugged thermal riflescope with long detection range and no complicated menus.
