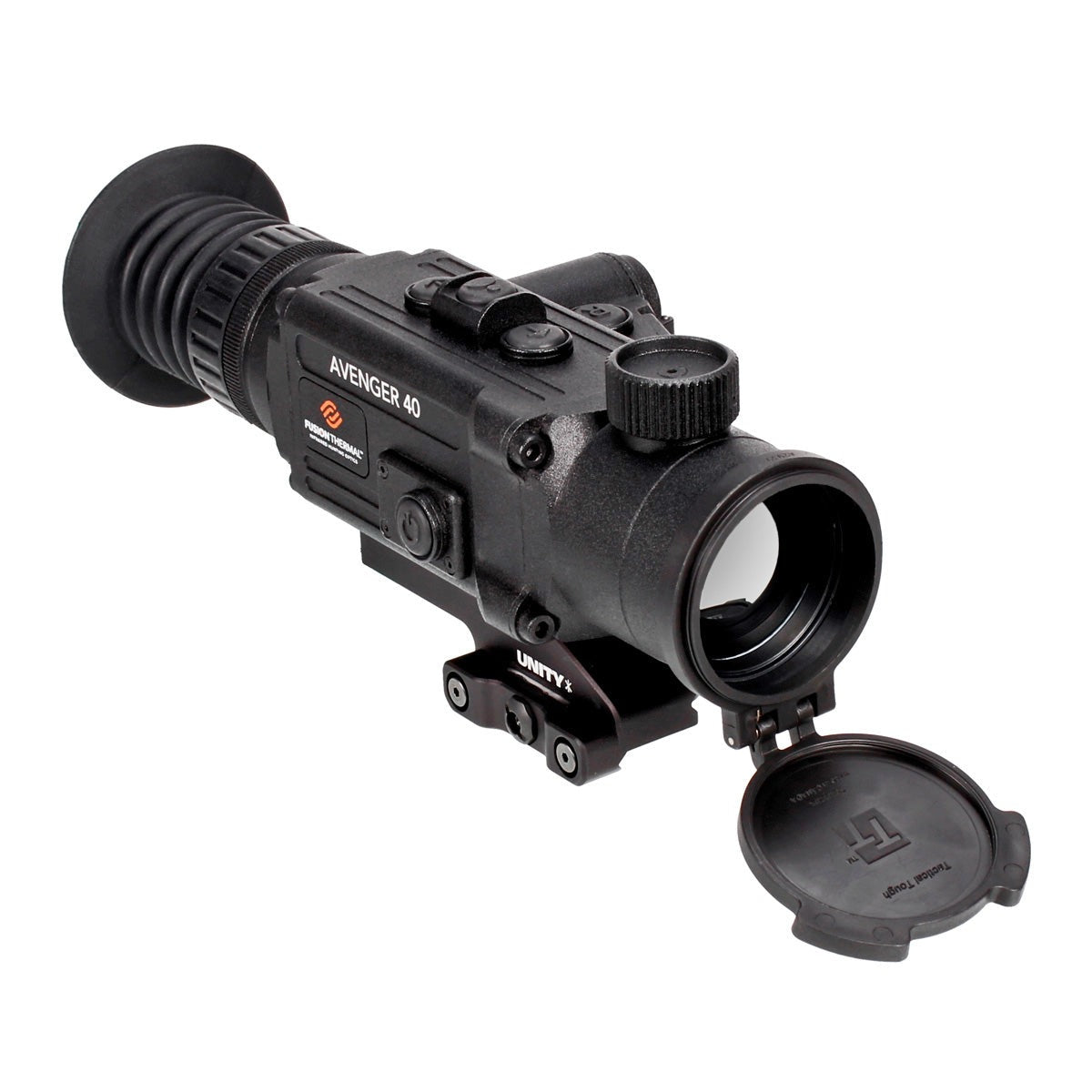

Fusion Thermal Avenger 40 Thermal Rifle Scope

$3,509.10

SKU: OF-FUSIONTHERMAL-AVENGER-40-THERMAL-RIFLE-SCOPE Categories: , Brand:

Discover the Fusion Thermal Avenger 40 Thermal Rifle Scope. Professional-grade Rifle Scopes gear for ultimate concealment and precision.

Description

The Fusion Avenger 40 is a thermal riflescope from Fusion Thermal with a 384×288 WAVE12 sensor and a 40 mm Arclight germanium lens. It combines a 384 WAVE12 sensor with a 40 mm lens and up to ten saved zero profiles.

Why choose the Fusion Avenger 40

With room for up to ten different zeros, the Avenger 40 is easy to move between rifles and loads. The 3x base magnification and 40 mm lens give a good balance of view and reach, and the Super HD OLED display keeps the image crisp. Fusion’s palettes include a predator mode for spotting animals quickly.

Key features

  • WAVE12 12 µm VOx sensor technology for even pixel uniformity and high sensitivity.
  • Arclight Ultra HD germanium objective lens with micro-click focus.
  • Super HD OLED RGBW display with 3.2 million dots.
  • Seven reticle designs plus a no-reticle option, in five colours.
  • T3 three-button control system and a simple English-language KISS menu.
  • XGEN 6082 aluminium housing, IP67 water resistance and a recoil rating of .300 Win Mag.

Fusion Avenger 40 specifications

Thermal sensor384×288 VOx (WAVE12), 12 µm
Frame rate50 Hz
Objective lens40 mm Arclight Ultra HD
Base magnification3.0x
Digital zoom6x and 12x
Field of view360 ft at 1000 yd
Detection rangeLong range for a 384 sensor
DisplaySuper HD OLED RGBW, 3.2 million dots
Colour palettes4
Reticles7 designs + no reticle, 5 colours
ProtectionIP67
Recoil rating.300 Win Mag
Gun profilesUp to 10 zeros

Choosing the right thermal scope

Start with the distances you usually shoot. A 384 sensor suits most hunting at typical ranges, while a 640 sensor shows more detail and helps you identify animals further away. A larger lens gives more reach, but a smaller lens gives a wider field of view for scanning. Also think about battery life, weight and whether you want a built-in rangefinder. If you need help comparing models, contact our team before you order.

Who it is for

The Fusion Avenger 40 suits hunters who use several rifles and want one thermal scope they can swap between them, for hog and predator hunting at medium range.

Additional information

Sensor Pixel Size

12 micron
